Description

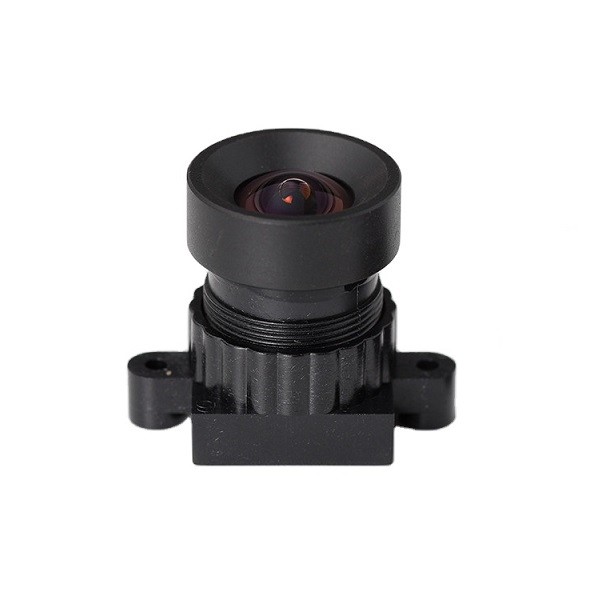

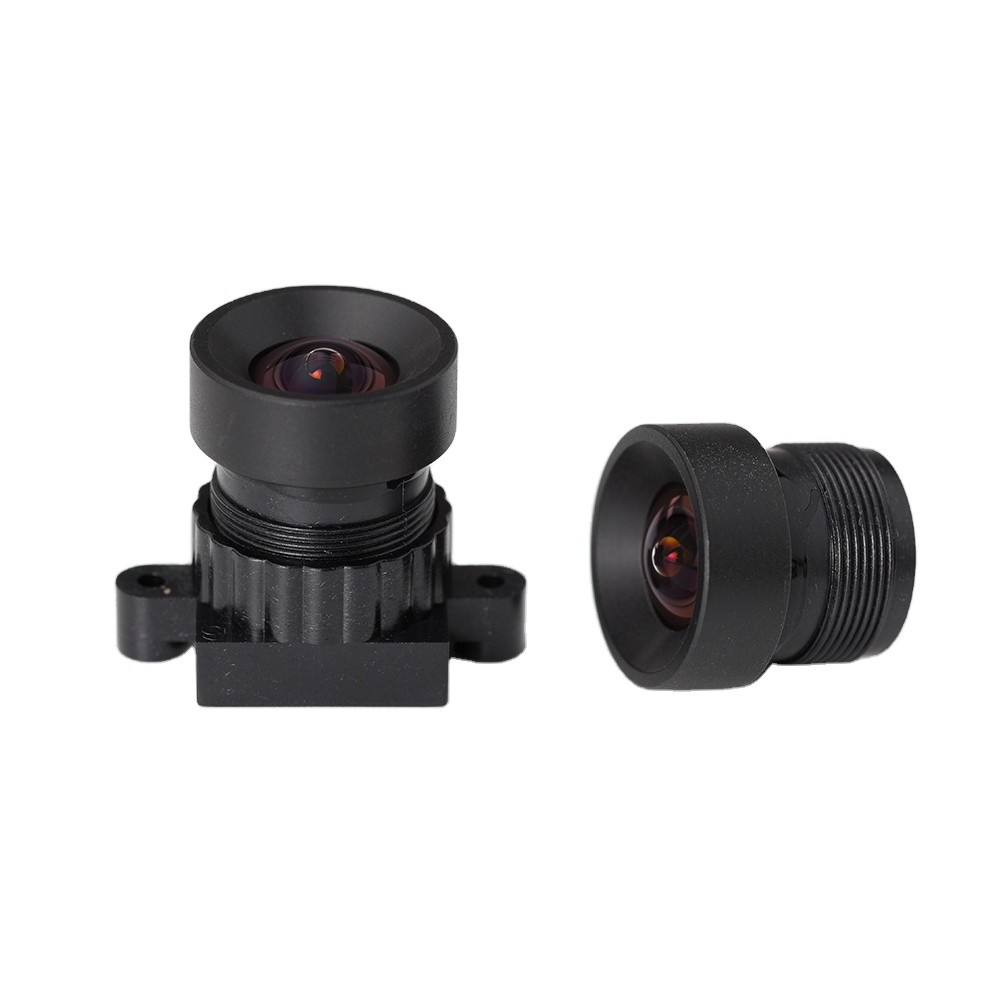

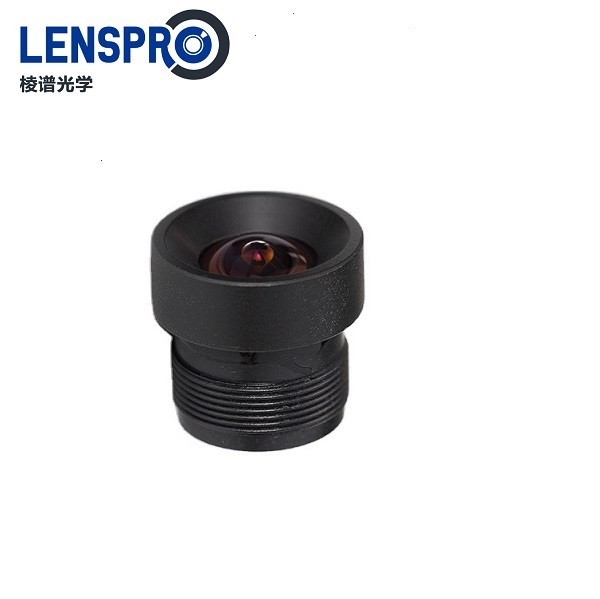

high performance hd cctv lens 1/2.7" 3.16mm 5 megapixel non distortion m12 f2.8 cctv lens for cctv camera
1. Focal Length: 3.16mm
2. Resolution: 5MP
3. Format: 1/2.7"
4. DFOV: 92 degree
5. IR Filter: IR650nm, IR850nm, IR940nm, Any kinds of filter can be customized
6. Mount: M12*0.5
7. Using: face recognition, face reader, document scanner and so on.
8. 5MP camera lens with low distortion makes the picture clearer.
|
Model(型号) |
MTV-0316BF127(5MP) |
|
|
Focal Length(焦距) |
3.16mm |
|
|
Resolution（分辨率） |
5 Megapixel |
|
|
Apeature（光圈） |
F2.0 |
|
|
Image Format（像面尺寸） |
1/2.7” |
|
|
Field Angle(D/H/V)（视场角） |
92°/84°/54° |
|
|
Mount（接口） |
M12*0.5 |
|
|
Operation（操作） |
Zoom（变焦） |
Fixed |
|
Focus（聚焦） |
Fixed |
|
|
Iris（光圈） |
Fixed |
|
|
Back Focal Length（光学后焦） |
3.8mm |
|
|
TTL（光学总长） |
15.6mm |
|
|
MOD（最小物距） |
0.3m |
|
|
IR Filter |
IR 650nm filter |
|
|
CRA |
<19° |
|
|
Distortion |
<0.95% |
|
|
Weight （重量） |
5g |
|
|
Working Environment （工作温度） |
-20℃~60℃ |
|
|
Dimension（尺寸） |
Φ14x12.95mm |
|
