Description

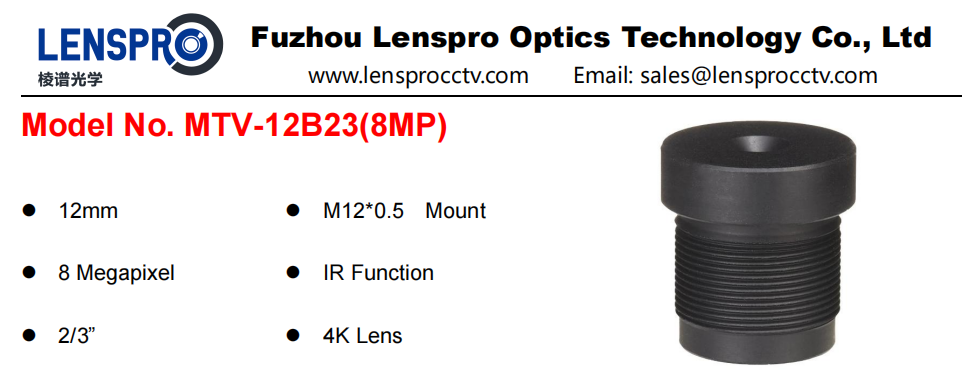

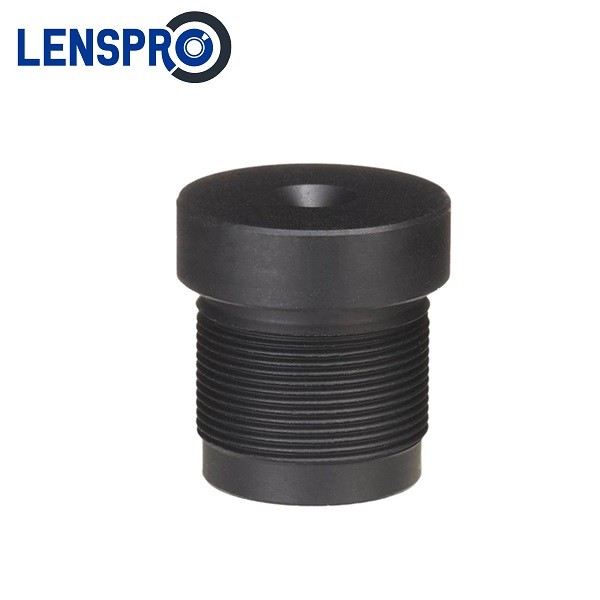

New 12mm 8MP 2/3 inch big format M12 Mount CCTV Lens
1. Focal Length: 12mm
2. Resolution: 8MP
3. Format: 2/3"
4. DFOV: 43 degree
5. IR Filter: IR650nm, IR850nm, IR940nm, Any kinds of filter can be customized
6. Mount: M12*0.5
7. Using: HD Camera, IP Camera, Hunt Camera, Industrial Camera Lens
1. Focal Length: 12mm
2. Resolution: 8MP
3. Format: 2/3"
4. DFOV: 43 degree
5. IR Filter: IR650nm, IR850nm, IR940nm, Any kinds of filter can be customized
6. Mount: M12*0.5
7. Using: HD Camera, IP Camera, Hunt Camera, Industrial Camera Lens
|
Model(型号) |
MTV-12B23(8MP) |
|
|
Focal Length(焦距) |
12mm |
|
|
Resolution（分辨率） |
8 Megapixel |
|
|
Apeature（光圈） |
F2.0 |
|
|
Image Format（像面尺寸） |
2/3” |
|
|
Angle of Field（视场角） |
43.4°*35.3°*26.9° |
|
|
Mount（接口） |
M12*0.5 |
|
|
Operation（操作） |
Zoom（变焦） |
Fixed |
|
Focus（聚焦） |
Fixed |
|
|
Iris（光圈） |
Fixed |
|
|
Back Focal Length（光学后焦） |
4.78mm |
|
|
TTL（光学总长） |
19.01mm |
|
|
MOD（最小物距） |
0.3m |
|
|
TV Distortion（TV 畸变） |
<-0.17% |
|
|
Weight （重量） |
5g |
|
|
Working Environment （工作温度） |
-20℃~60℃ |
|
|
Dimension（尺寸） |
Φ14x14.69mm |
|
