Description

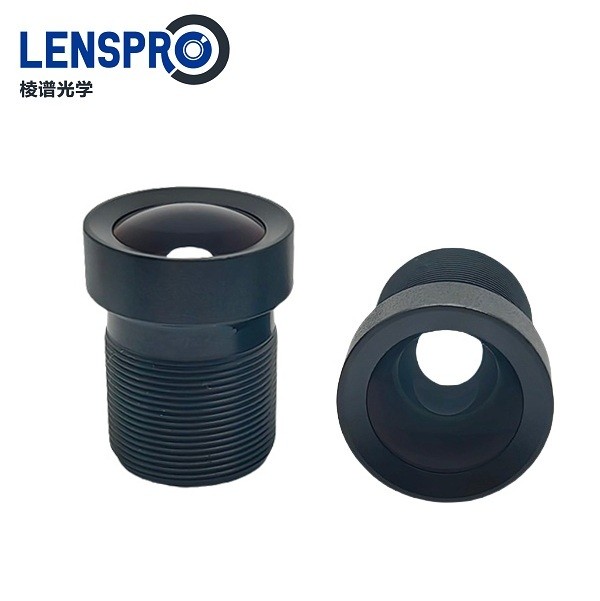

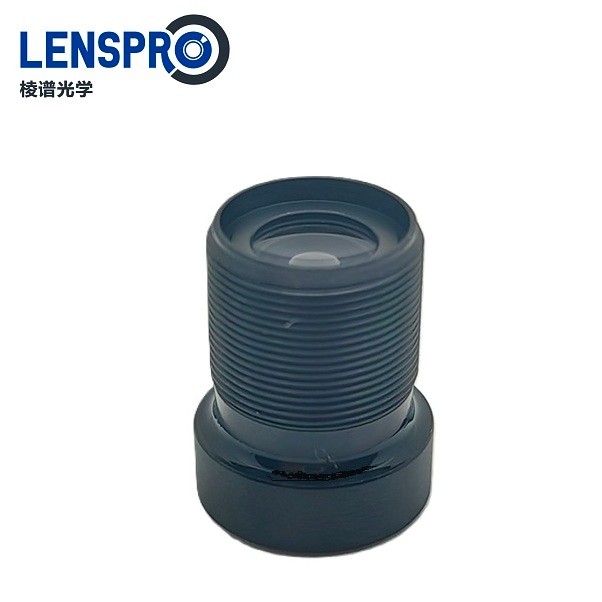

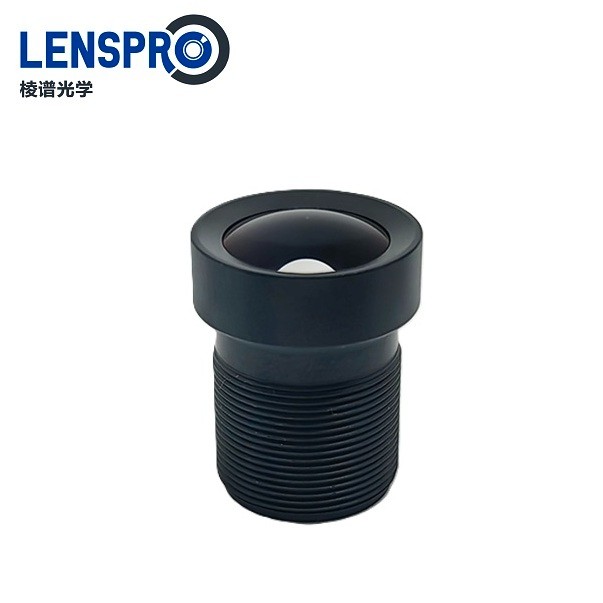

12MP series M12 Mount 12mm Low distortion Lens for IMX304 IMX415
1. Focal Length: 12mm
2. Resolution: 12MP
3. Format: 1/1.8"
4. DFOV: 40 degree
5. IR Correction: No
6. Mount: M12*0.5
7. Using: Industrial Camera, Robot, Drone, Scanner, Security

|
Model(型号) |
MTV-12B118(12MP) |
|
|
Focal Length(焦距) |
12mm |
|
|
Resolution(分辨率) |
12 Megapixel |
|
|
Apeature(光圈) |
F2.8 |
|
|
Image Format(像面尺寸) |
1/1.8” |
|
|
Angle of Field(视场角) |
40°*35°*20.4° |
|
|
Mount(接口) |
M12*0.5 |
|
|
Operation(操作) |
Zoom(变焦) |
Fixed |
|
Focus(聚焦) |
Fixed |
|
|
Iris(光圈) |
Fixed |
|
|
Back Focal Length(光学后焦) |
9.86mm |
|
|
TTL(光学总长) |
26mm |
|
|
MOD(最小物距) |
0.3m |
|
|
Optical Distortion(光学畸变) |
<-0.01% |
|
|
Weight (重量) |
5g |
|
|
Working Environment (工作温度) |
-20℃~60℃ |
|
|
Dimension(尺寸) |
Φ14x18mm |
|
